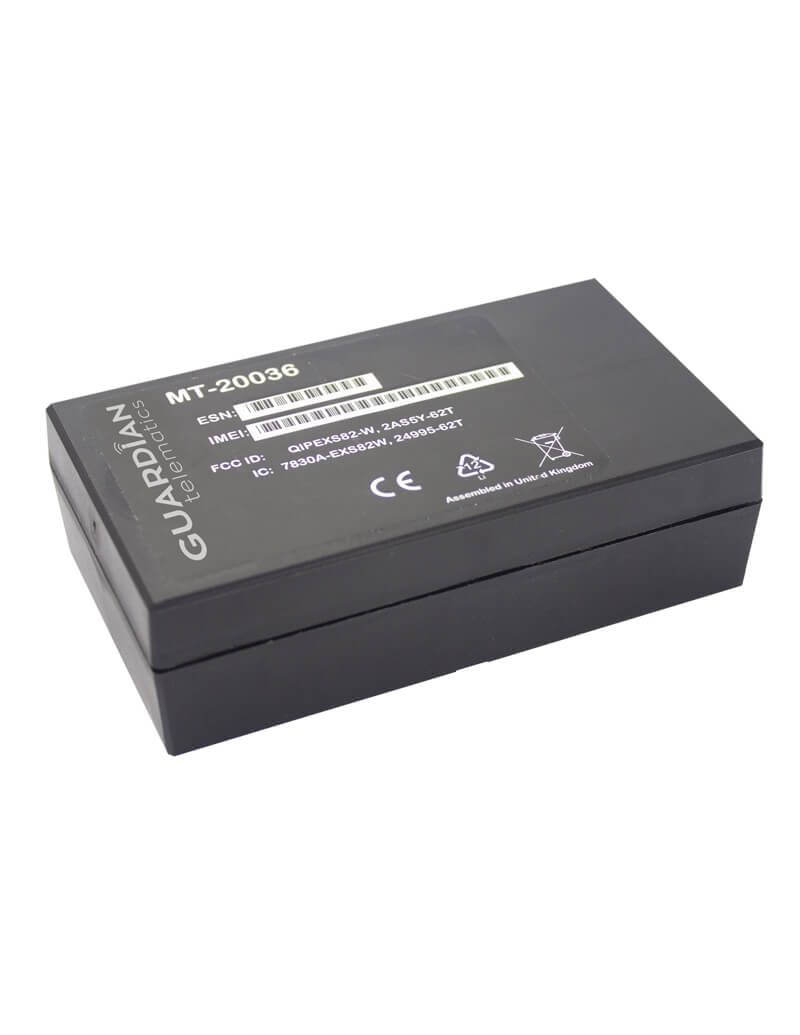

MAGTRACK
4G RECHARGEABLE ASSET TRACKER
General Information
When you have no visibility into unauthorized use of corporate vehicles, it impacts the safety and security of your business. Use geo-fencing to get complete control and protect your assets and business.
Waterproof
IP65 Rated
Long Life battery
7800mAHr Battery
Lasts up to 5 years
Magnetic
Quick Attachment
Security Sensors
Vibration/Movement
Sensor Tamper/Removal sensor
Detailed Specs
(GSM/GPRS) IP65 waterproof GPS asset tracker
Long life 7800mAHr battery, lasts up to 5 years with a single charge (based on one report per day)
Embedded with magnets for quick and simple attachment to vehicles, trailers, containers etc
Built in vibration movement sensor which, when activated, sends alert that can remotely switch the unit into theft pursuit mode (Via App). Plus Lumen light detection alert if tracker is lifted from fixing
Supports TCP/UDP and HTTP, automatically switch to cell-ID based location reporting whenever GPS is not available, with European
Pay monthly packages available on request
Dimensions: 86 mm 62 mm 33 mm
Weight: 286g
Battery capacity: 7800mAh
Supply Voltage: 3.3v~4.5v
Power Consumption:
Active mode: <85mA @3.8VDC
Sleep mode: <5mA @3.8VDC
Deep sleep mode: <15μA @3.8VDC
Operation temperature: -20°c to 65°c
Storage temperature (Without battery): -40°c to 85°c
3 LEDs for charging, GPS and Cellular status | Built-in Cellular and GPS antenna
-162 dBm Tracking Sensitivity
Location Technology (56 channel GPS)
Location Accuracy <2.0m (CEP50)
Quad-Band: GSM/GPRS 850/900/1800/1900 MHZ
GPRS multi-slot class 12
Output Power:
Class 4 (2W @850/900MHZ)
Class 1 (1W @1800/1900MHZ)
Protocol: TCP/UDP/SMS
